WaveWare

WaveWareWaveWare

WaveWare

Paging Data Receiver

Paging Data ReceiverPaging Data Receiver

Paging Data Receiver

8. Programming

The RCD-1 is configured by connecting a computer’s RS-232 serial port to the programming port on the

receiver module within the RCD-1, using a programming kit that includes an interface board, connecting

cables, power supply, and programming software. The programming kit is sold as an optional item.

The RCD-1 incorporates a Gold Apollo receiver module, and uses the Gold Apollo programming hardware

and software to configure the RCD-1 feature set.

8.1. Programming Screens

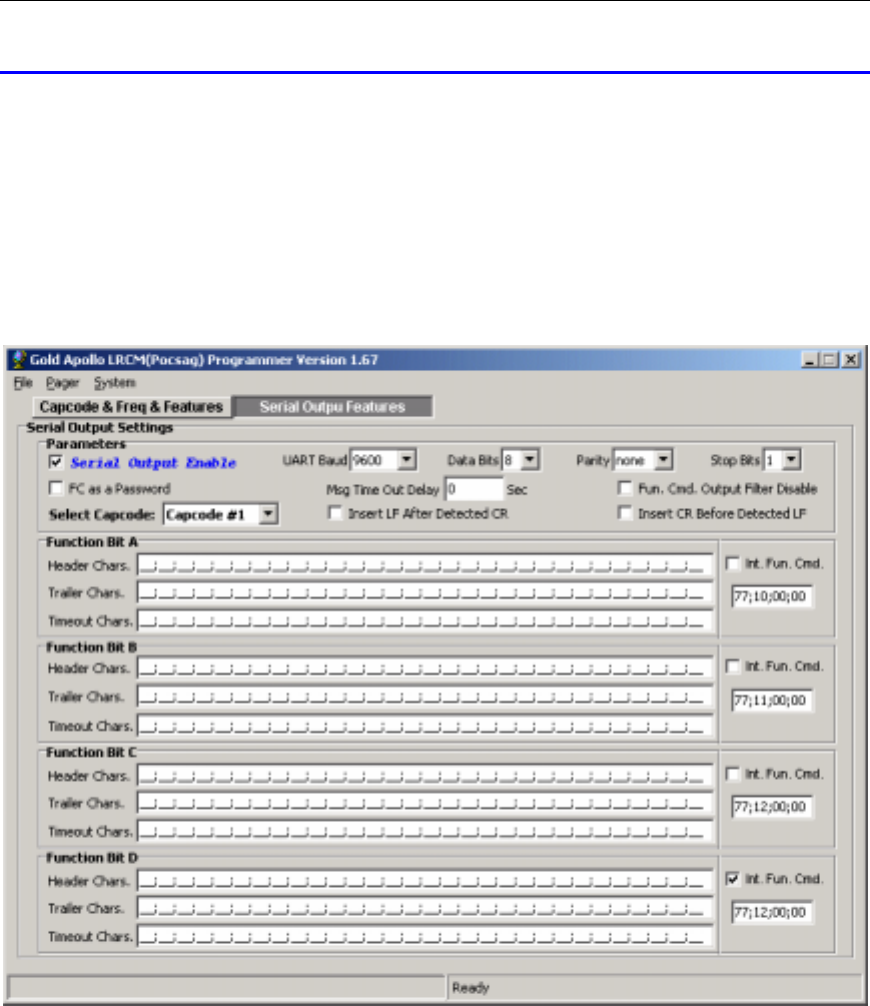

Following are snapshots of the two screens in the RCD-1 programming software:

1 2 ... 7 8 9 10 11 12 13 14 15 16
