3. ASSEMBLY AND INSTALLATION

Assemble the components supplied with MAXPage unit as follows:

3.1 Required Components

Antenna

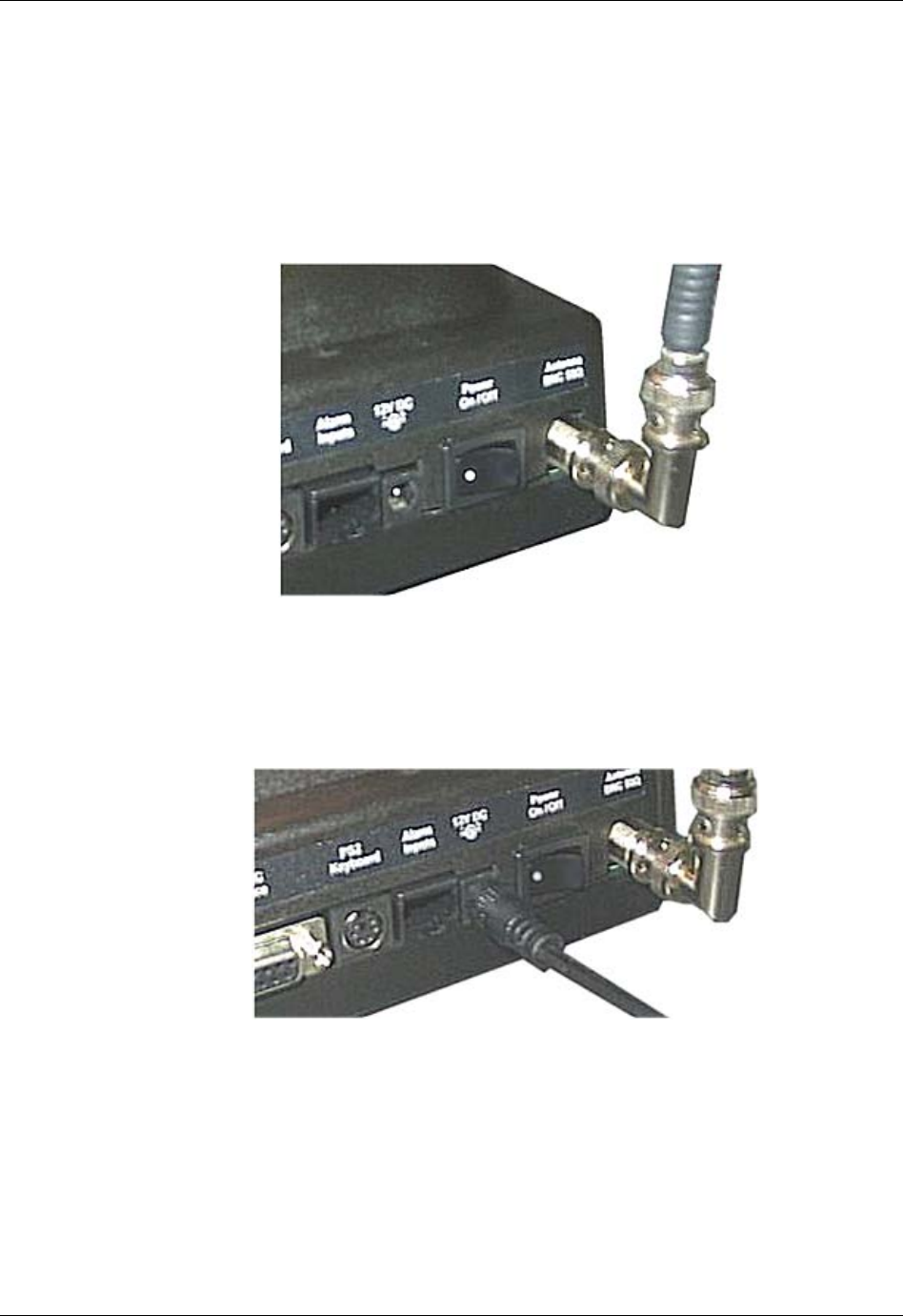

Attach the right angle BNC adapter to the quarter wave whip antenna. Screw the

quarter wave whip antenna onto the BNC transmitter connector located on the rear

panel of the MAXPage unit.

Power Adapter

Plug the power adapter into mains power. Ensure the power switch on the back of the

MAXPage unit is in the off position. Plug the power adapter into the power connector

on the rear panel of MAXPage.
