Appendix L – Connectors and Indicators

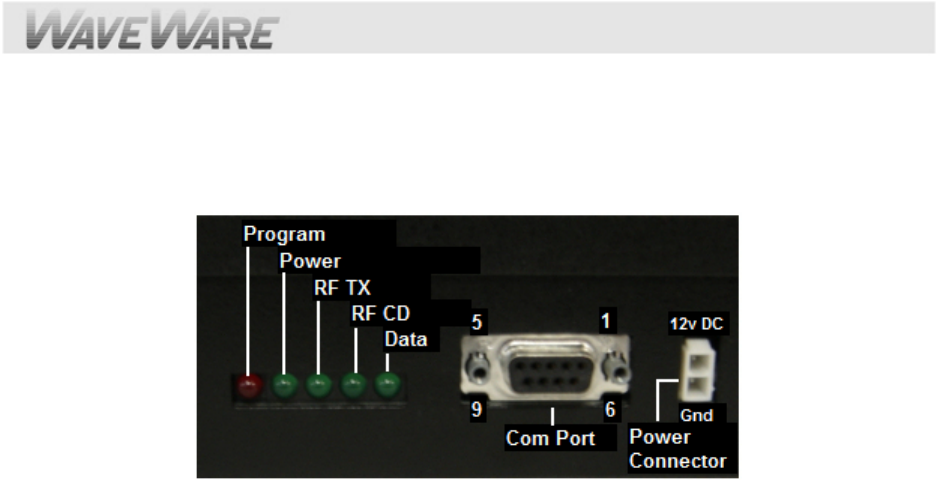

SPS-5 v9S Single Com Port System:

LED Indicators:

POWER: GREEN LED – Shows Power is Applied

RF TX: GREEN LED – Shows Transmission of Page

RF CD: GREEN LED – Shows Carrier Detect

DATA: GREEN LED – Shows RS-232 Cable is Attached

PROGRAM: RED LED – Shows when In/Out of Programming Mode and Rebooting System

This Completes the “Connectors and Indicators”
