Certification Manual

- 37 -

also important that the panel not be accessible to residents or the general

public.

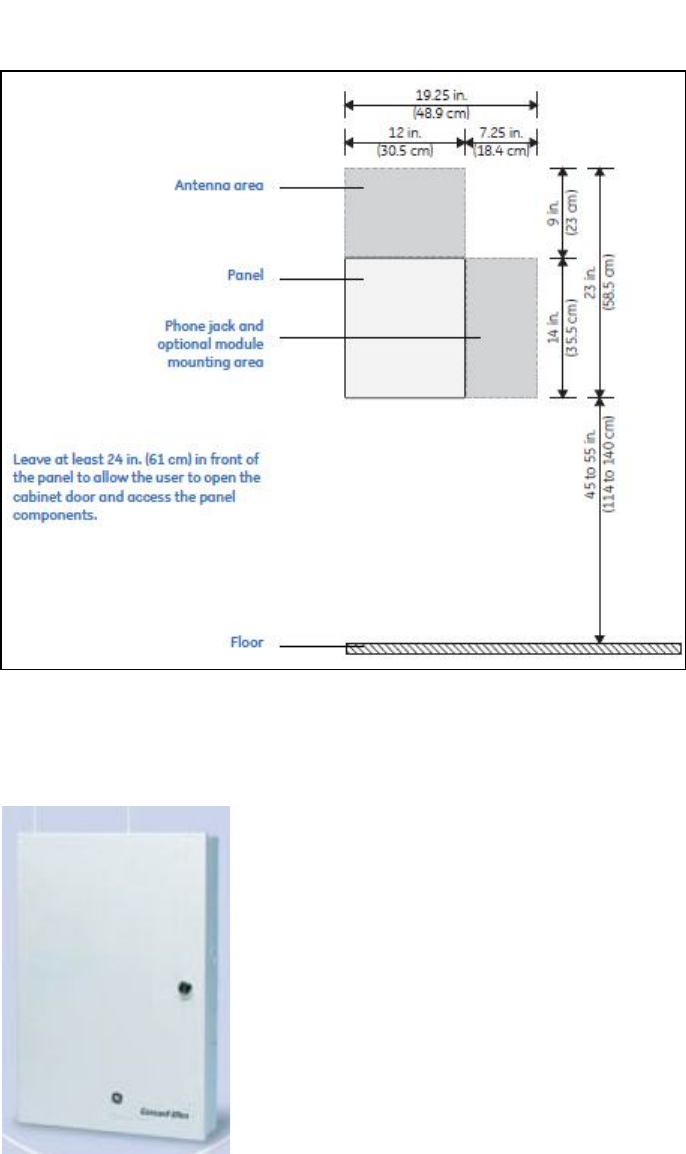

Figure 13 shows

the dimensions

required for the

control panel, and

typical installation

configuration.

Make sure the

panel is mounted

far enough down

from the ceiling to

allow for the

external antennae

to stick up.

Concord Ultra Panels

The Ultra can support up to 16 bus devices, and has a

rated wireless range of 2000’. The extended range is

the primary feature that sets the Ultra apart from the 4,

and is the primary reason why Alliance installs more

Concord Ultra Panels than any other panel. Another

key difference is the input voltage. The Concord 4

Panel requires 16.5VAC, while the Ultra requires

24VAC. This is very important to remember, so that the

wrong power supply is not used.

Figure 1

Concord 4 Install

ation
